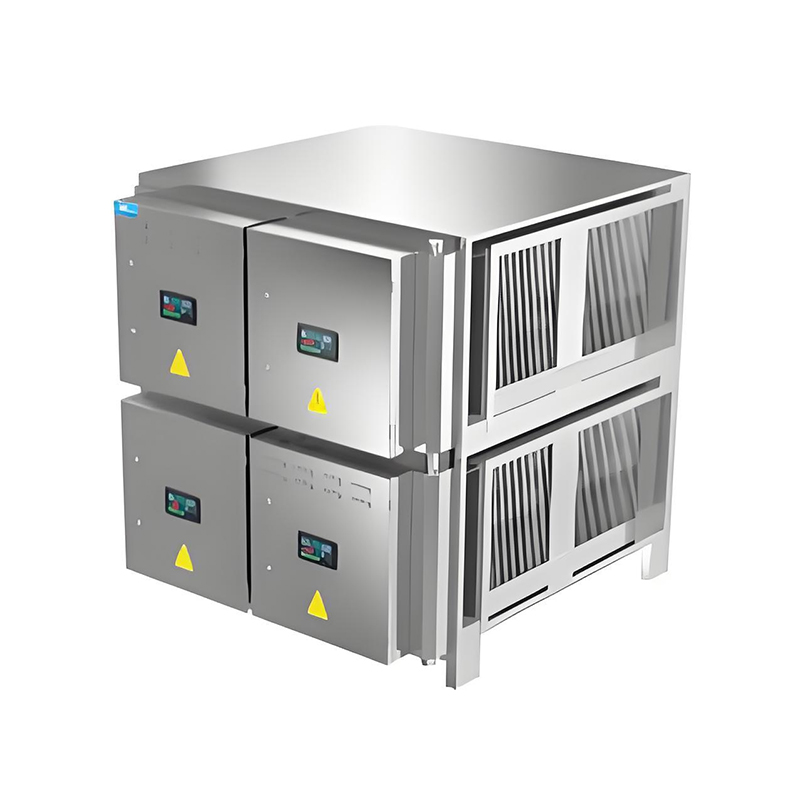

Commercial Kitchen Fume Purifier with Up to 98% Purification Efficiency

Technical Description: This high-performance system features a 201 stainless steel housing, an electrostatic field, a digital power supply, and a high-voltage output system. Designed for air volumes ranging from 4,000 m³/h to 40,000 m³/h, it delivers a purification efficiency of up to 98%. It is ideal for hotels, canteens, and other large commercial kitchens with heavy cooking fumes. CMA/CAL-certified test reports are available upon request.

Product Highlights: Engineered for high-efficiency fume purification, this system is designed to meet demanding environmental requirements. In addition to its strong purification performance, it features a built-in automatic cleaning system that enables one-touch operation and reduces the need for manual disassembly and cleaning. It is an ideal solution for hotels and commercial kitchens seeking efficient purification and easier maintenance.

Request A Quote
Technical Parameters Contact Us

Model

Air volume m³/h

Volume(mm)L*W*H

Flange inner diameter(mm)

Power W

DY-X98-Y4K

4000

1290*780*733

517*493

600

DY-X98-Y6K

6000

1290*880*733

617*493

800

DY-X98-Y8K

8000

1290*1180*733

917*493

1000

DY-X98-Y12K

12000

1290*1380*733

1117*493

1600

DY-X98-Y16K

16000

1290*880*1326

617*1086

2000

DY-X98-Y20K

20000

1290*1180*1326

917*1086

2500

DY-X98-Y25K

25000

1290*1380*1326

1117*1086

3000

DY-X98-Y30K

30000

1290*1680*1326

1417*1086

4000

DY-X98-Y36K

36000

1290*1980*1326

1717*1086

4800

DY-X98-Y42K

42000

1290*1680*1919

1417*1679

6400

The DY-X98 series equipment has a fume removal efficiency of 98% under rated air flow conditions in the laboratory.
