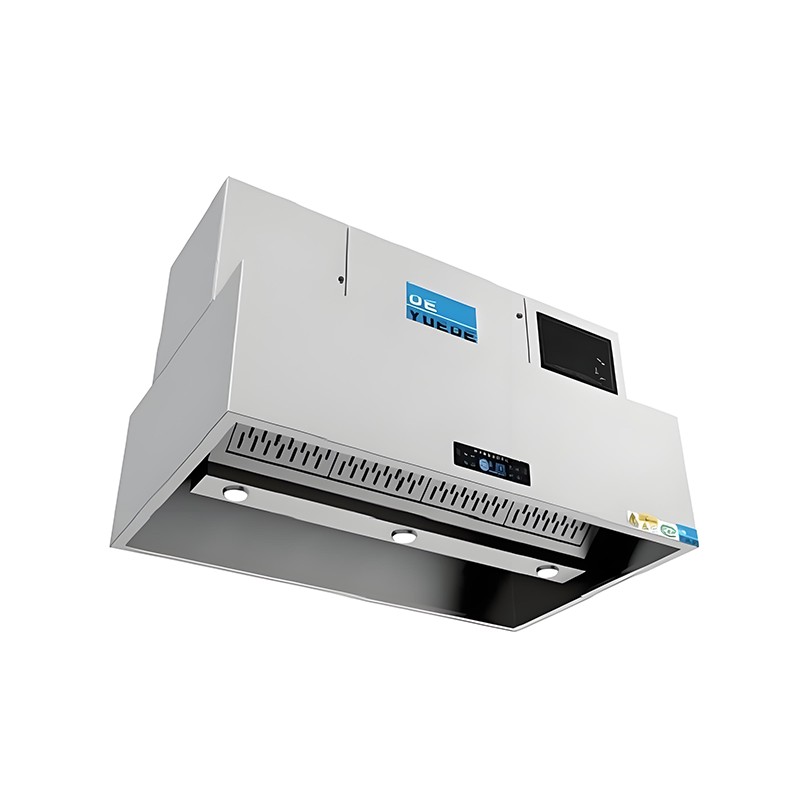

Integrated Fume Purification System for Open Kitchens

Product Features:

  1. Equipped with a digital power supply for safe and stable operation.
  2. Low noise and low airflow resistance.
  3. Front-end purification with low-level discharge capability.
  4. Patented flat-panel design for both practicality and visual appeal.
  5. Suitable for open kitchens, show kitchens, and both Chinese and Western restaurants.

The integrated fume purification system for open kitchens is specially designed for open kitchen environments in both Chinese and Western restaurants, providing an effective balance between purification performance and modern kitchen design.

Patented Design & Visual Appeal: Featuring a patented flat-panel design, this system is both practical and visually appealing, allowing it to fit well into modern and high-end dining environments.

Front-End Purification & Low-Level Discharge: Designed for open kitchens, the system provides efficient front-end purification and low-level discharge. Its low-noise operation and low airflow resistance help control oil fumes effectively without affecting the customer dining experience.

Request A Quote
Technical Parameters Contact Us

Model

Size(m)L*W*H

Handling air volume m³/h

Weight KG

Fan power KW

Total power KW

DY-YZ-MD-1.6

1600*1000*1000

4000

170

1.1

2.2

DY-YZ-MD-2.0

2000*1000*1000

5000

220

1.1

2.4

DY-YZ-MD-2.4

2400*1000*1000

6000

250

1.5

2.8
